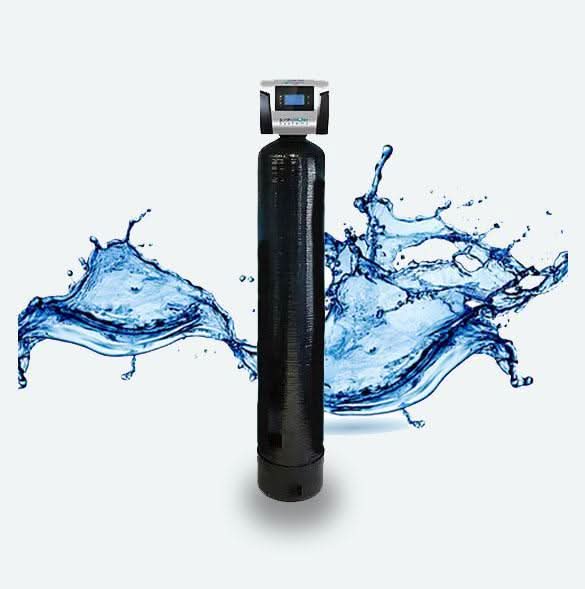

What the Iron Master AIO Actually Does to Your Water

Let's be real — iron in your well water doesn't hide. It announces itself. Orange streaks across your sinks. A metallic bite in every glass. That gut-punch rotten egg smell every time you run a tap. Brown buildup quietly destroying your plumbing and appliances from the inside out. This isn't one problem. It's a whole crew of problems showing up at once.

Well water carries iron in multiple forms — dissolved ferrous iron, oxidized particulate iron, iron bacteria — along with manganese and hydrogen sulfide, all crashing your water supply together. You need a system that handles all of them. Not a workaround. A solution.

The Iron Master AIO was engineered specifically for this fight. Using Air Injection Oxidation technology, it injects a controlled pocket of air directly into your incoming water stream. As water pushes through that oxygen-rich zone, dissolved iron and manganese are instantly oxidized — converted from invisible, dissolved troublemakers into solid particles. Then the high-density Katalox media bed captures every last one of those particles before a single drop reaches your fixtures, appliances, or your glass.

The result? Comprehensive iron removal up to 30 ppm of iron and 7 ppm of manganese — plus hydrogen sulfide elimination that wipes out the sulfur stench well owners know all too well. This is not a repurposed sediment filter. Every component — from the 1-inch high-flow control valve to the specially formulated filtration media — is built for the specific chemistry and demands of residential well water iron treatment.

As a standalone whole house system, the Iron Master protects every cold and hot water outlet in your home. Pair it with a SoftPro water softener upstream and you've got a complete well water solution tackling hardness, iron, manganese, and sulfur simultaneously. Four major well water problems. One clean, streamlined setup.

Key Performance Capabilities

• Removes up to 30 ppm of total iron — ferrous, ferric, and colloidal forms
• Eliminates up to 7 ppm of manganese that causes black staining and metallic taste
• Neutralizes hydrogen sulfide responsible for rotten egg odors throughout the home
• Raises pH naturally toward a healthier, less corrosive balance — no chemical additives required
• Operates without chlorine, potassium permanganate, or any chemical regenerant
• Automatic backwash cycle cleans the media bed and restores the air pocket overnight

What Arrives With Your Iron Master Order

No hunting down missing pieces. No surprises at the install. The Iron Master ships as a fully equipped iron filtration system — everything you need for correct installation and long-term performance is in the box.

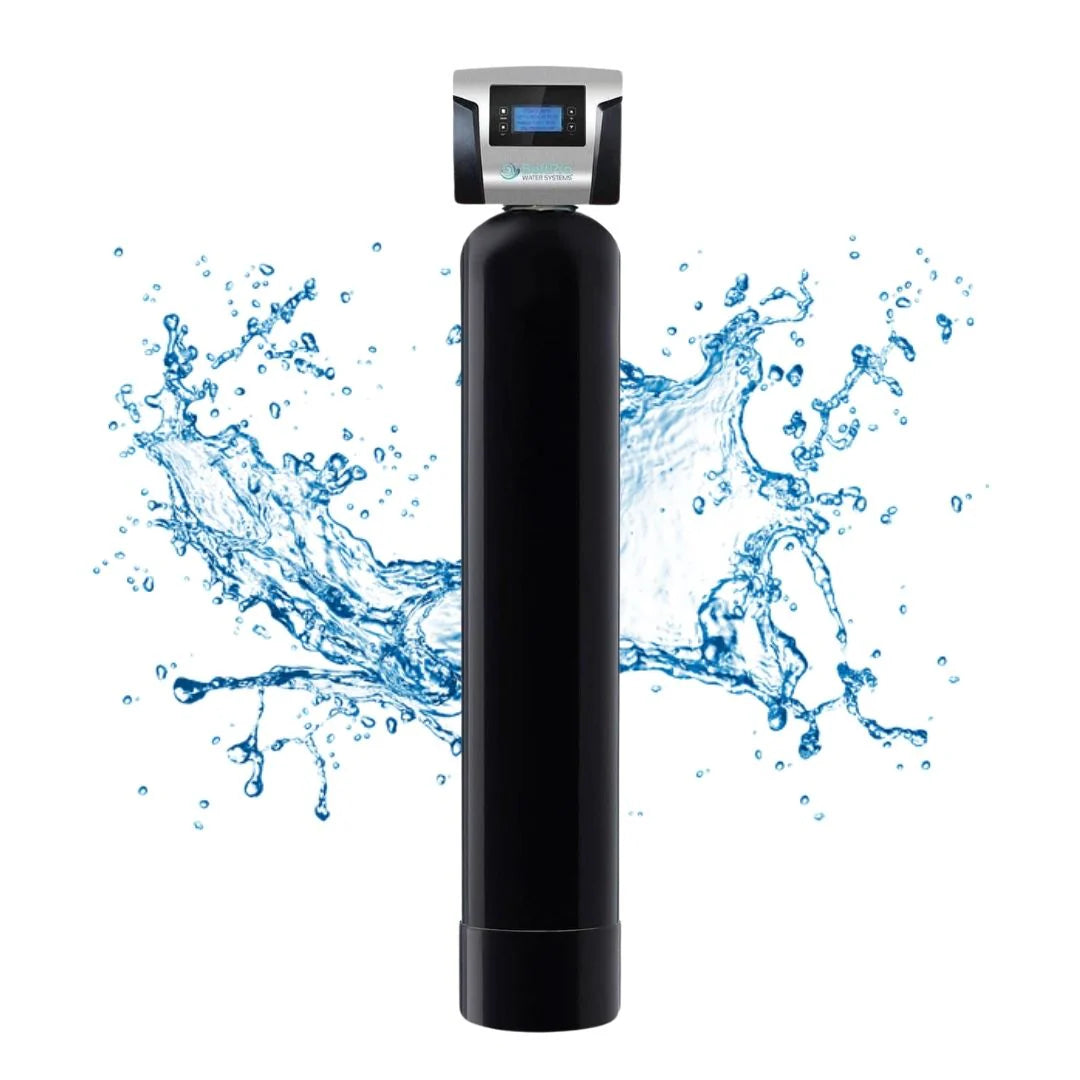

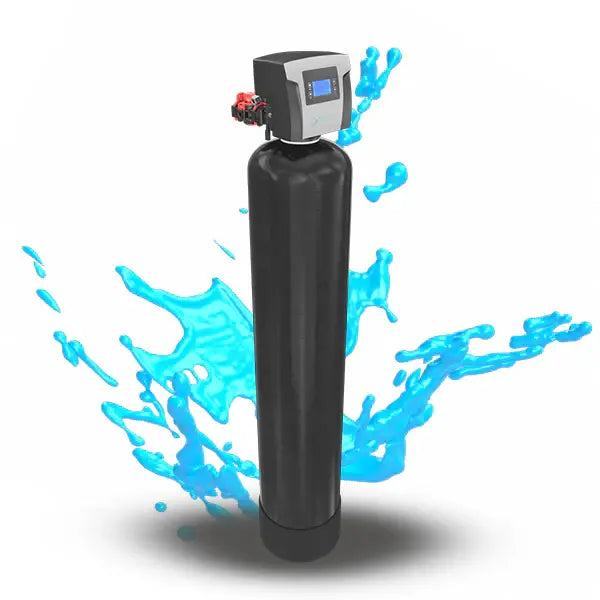

• Iron Master AIO filtration tank sized in your chosen capacity — 1.0, 1.5, or 2.0 cubic feet
• High-capacity Katalox filtration media pre-loaded and ready for commissioning

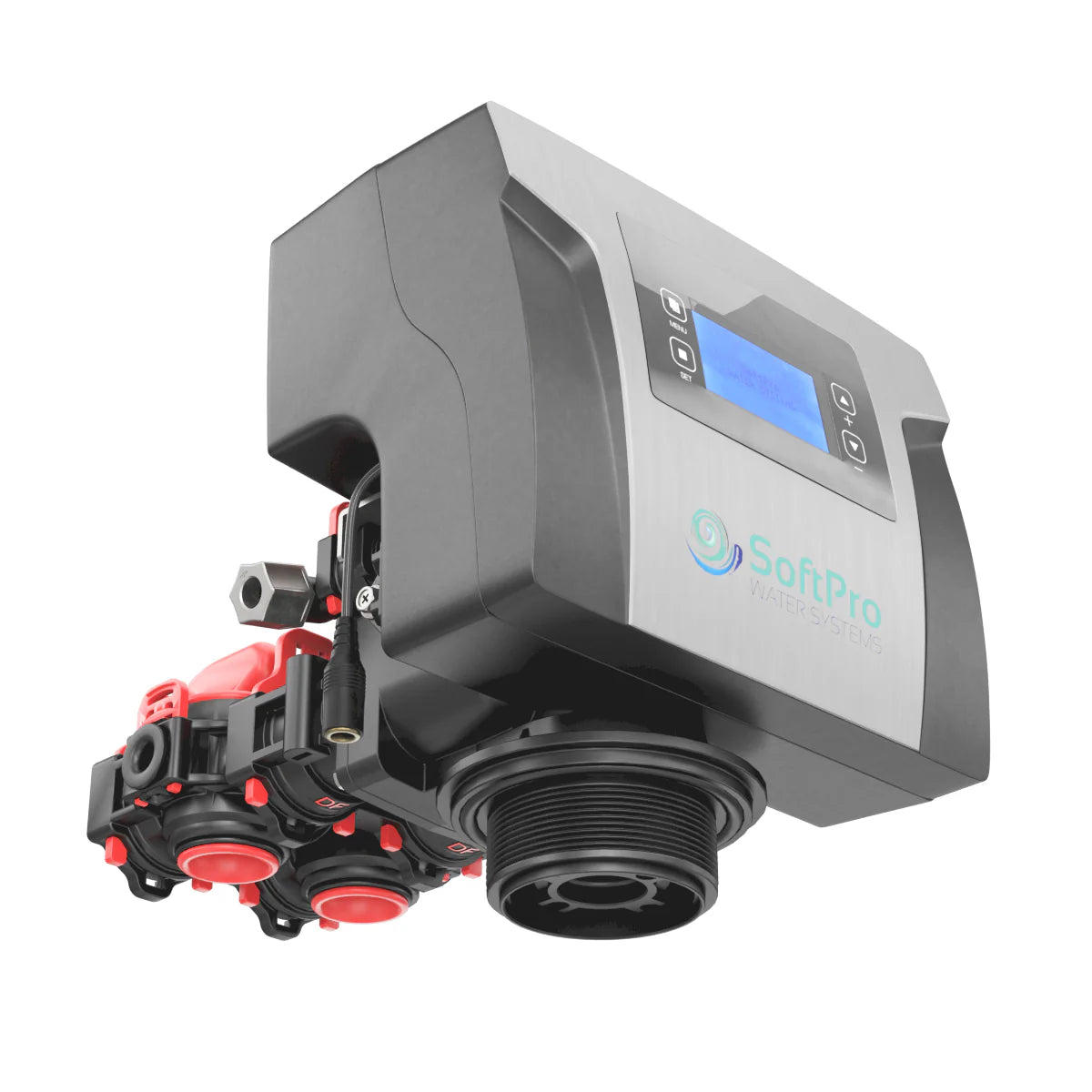

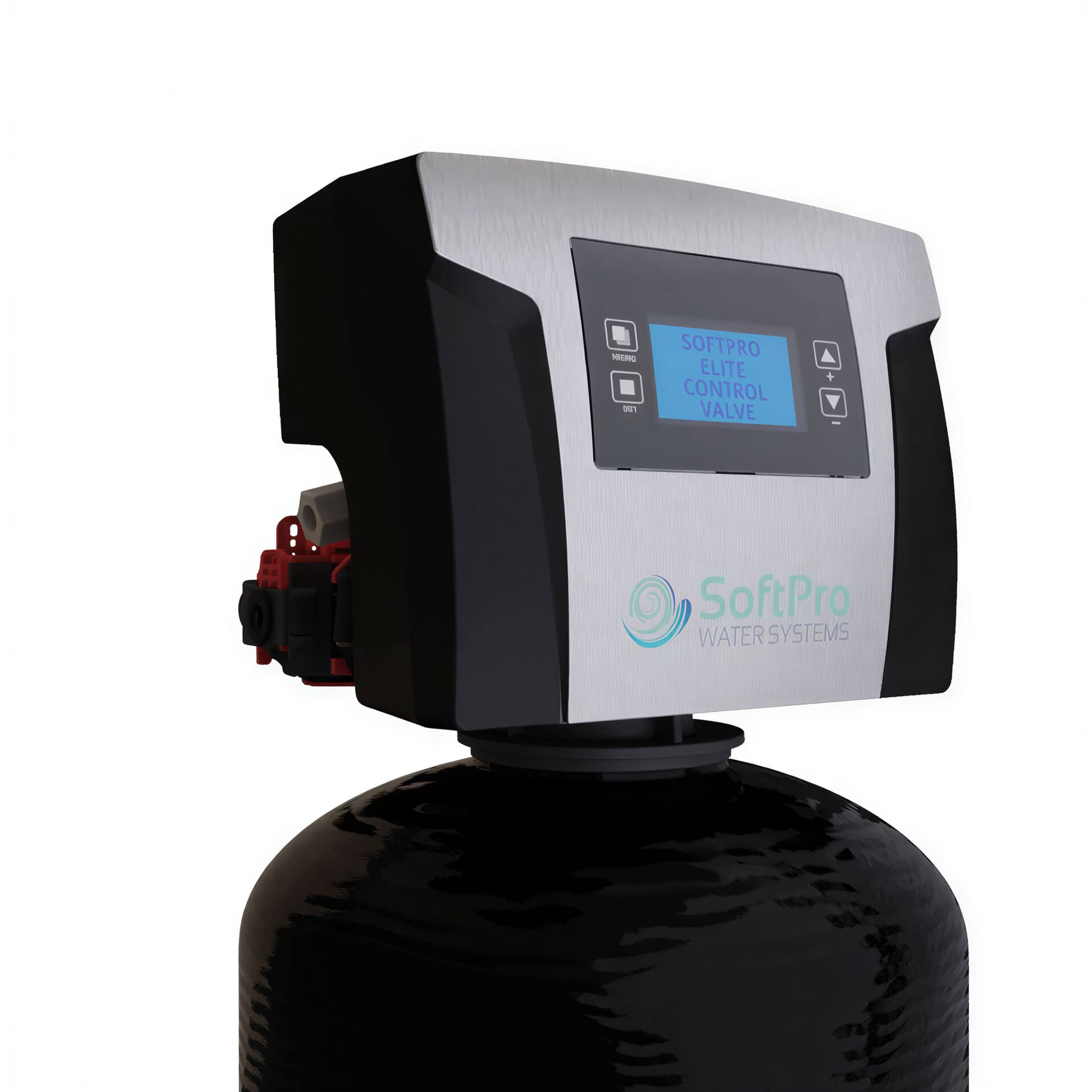

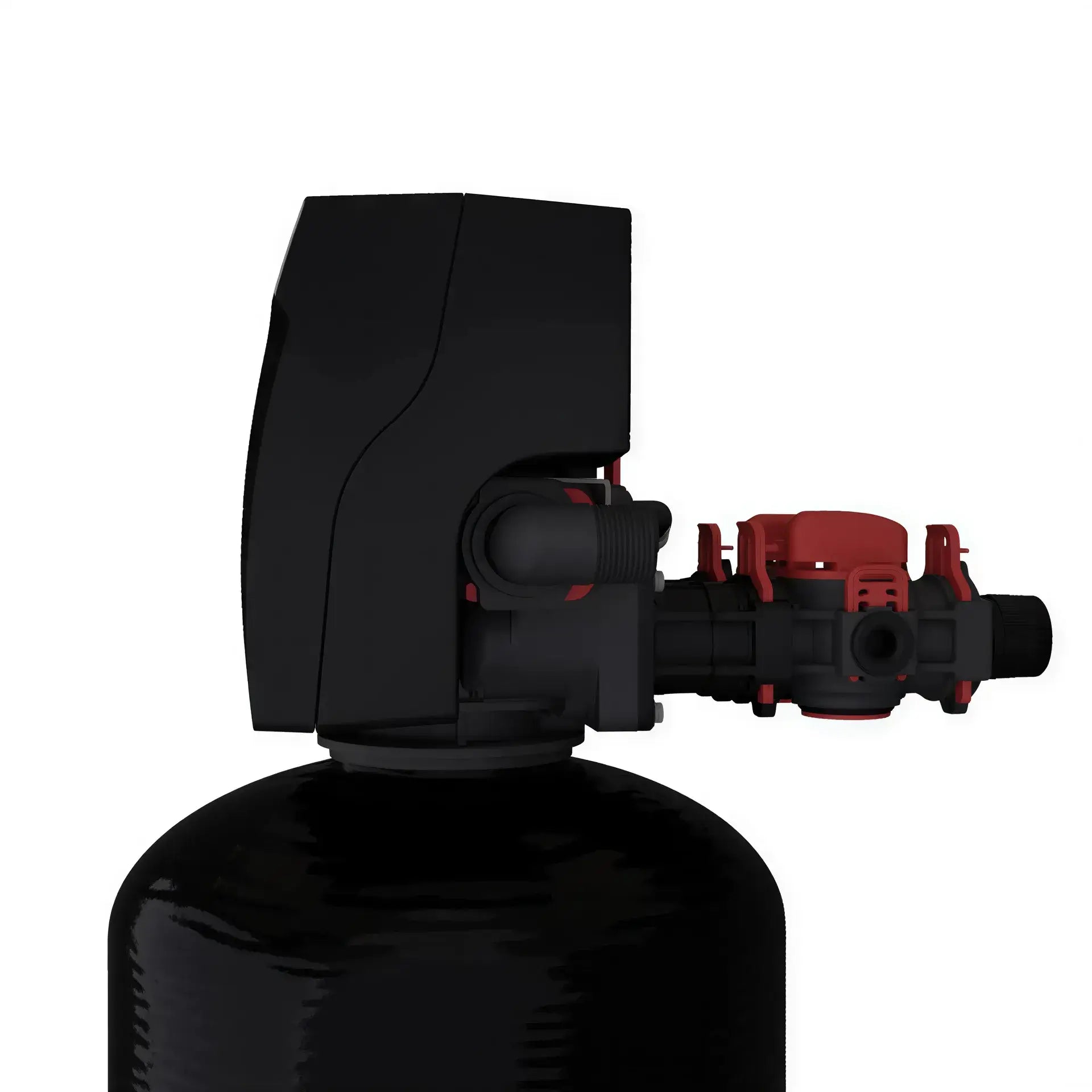

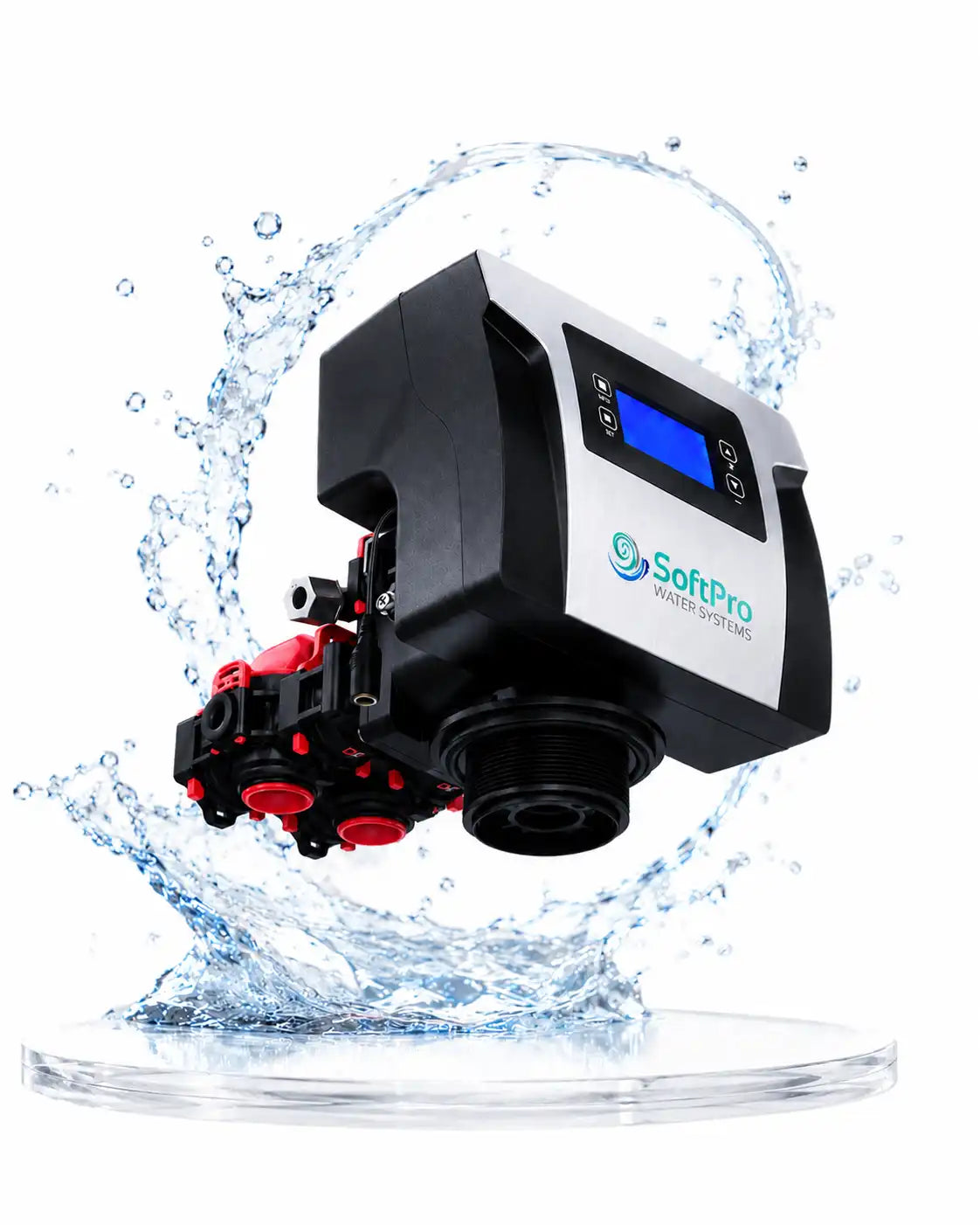

• 1-inch programmable control valve with 4-line LCD display and electronic touchpad

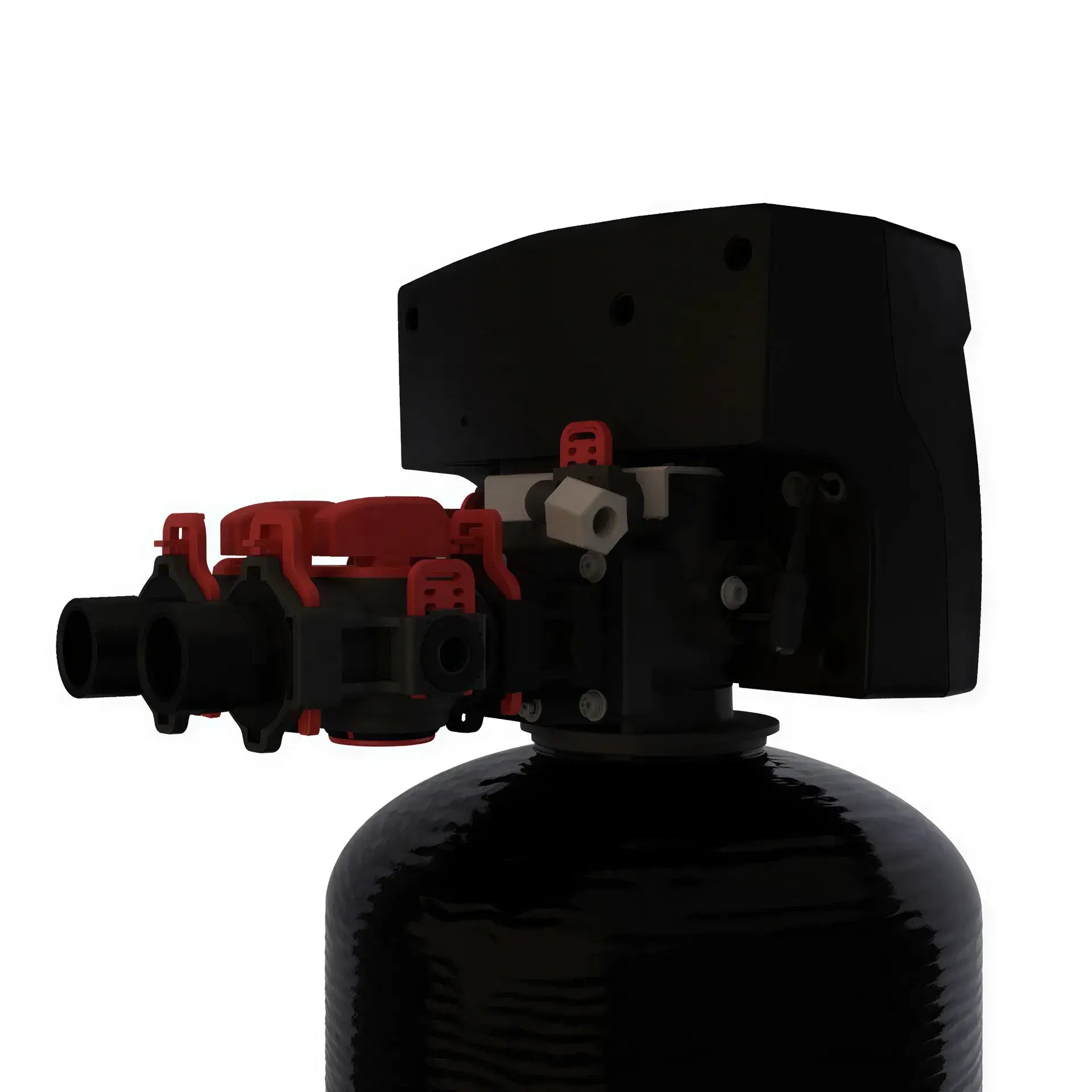

• Air injection assembly integrated into the control valve for chemical-free oxidation
• All standard plumbing connections and bypass valve components
• Full printed installation guide with QR-linked video walkthrough
• Direct access to SoftPro's well water support team for installation questions

Want to go the extra mile? Optional add-ons at checkout include quick-connect flexible hose kits in 3/4-inch and 1-inch configurations and a weather-resistant valve cover for outdoor or semi-exposed installations.

Why the Iron Master Is the Right Choice for Well Water Iron Problems

Here's the deal: a water softener handles hardness minerals. A carbon filter handles chlorine and organics. Neither one is built for the biochemical battle of high-concentration iron removal. Iron in well water exists in dissolved and particulate forms, reacts unpredictably with oxygen, and at elevated levels will foul standard softener resin within months. The Iron Master is built around that reality.

Air Injection Oxidation works on a fundamentally different mechanism than chemical dosing systems. Instead of injecting chlorine or potassium permanganate to force oxidation, the AIO process uses compressed air — stored in a pocket at the top of the tank — as the oxidizing agent. Every time water enters the system, it moves through that air pocket and iron converts from its dissolved, invisible form into a filterable solid. The air pocket automatically replenishes during each backwash cycle. Consistent performance. No cartridge swaps. No chemical top-ups.

Homeowners with severe iron problems — water testing above 10, 15, or 20 ppm — often burn through cheaper filter options before discovering the Iron Master. Those who install it first find the system handles their actual iron load comfortably, maintains full water pressure through the 1-inch ported valve, and demands nothing beyond an annual inspection of the media bed and control valve settings.

Reasons Well Water Homeowners Consistently Choose the Iron Master

• Proven removal capacity for high-iron well water up to 30 ppm — zero chemical dependency
• Natural AIO oxidation process — no storage, handling, or disposal of treatment chemicals
• Rust stains on fixtures, toilets, laundry, and dishwashers gone within days of installation
• Sulfur odor eliminated — no more dreading your own tap water
• Full household water pressure maintained through a 1-inch high-flow valve design
• Compatible with all SoftPro softeners for a complete two-stage well water treatment system
• Long-term media life with Katalox — far lower maintenance cost than chemical systems

Warranty Coverage and Your Money-Back Guarantee

Iron-loaded well water is hard on filtration equipment. The Iron Master is designed and built to handle those demands for years without failure — and the warranty reflects that confidence straight up. Every system includes a limited lifetime warranty on the filtration tank and all core components, covering defects in materials and workmanship under normal residential use.

The 60-day money-back guarantee gives you real-world time to see the Iron Master perform in your specific well water conditions. If rust stains haven't disappeared, sulfur odors haven't cleared, and iron levels haven't dropped to where your water is genuinely clean and pleasant — return it within 60 days for a full refund. No complicated claims process. No pressure to keep a system that hasn't delivered.

• Limited lifetime warranty on the pressure tank and core filtration components.
• 60-day money-back guarantee — full refund if you're not satisfied with the results.
• Support from trained water treatment professionals before, during, and after your purchase.

Installing the Iron Master — What to Expect

The Iron Master installs at the main point of entry — right after the pressure tank and before the water supply branches throughout your home. Every fixture, every appliance gets filtered water from the moment it leaves the system. No chemical feed equipment. No pressurized chemical tanks. No secondary pump systems crowding your utility space.

Most installations are done in two to four hours by a licensed plumber or an experienced DIY homeowner who's comfortable with basic plumbing connections. The control valve arrives pre-programmed with baseline settings. You dial in your local water conditions on the intuitive LCD touchpad, connect the drain line for backwash discharge, and the system runs its own maintenance schedule automatically from that point on.

Installation Essentials

• Install at the main entry point after the pressure tank for whole house coverage
• Requires a drain connection for the automatic backwash cycle — typically 2 to 4 gallons per minute
• Minimum flow rate varies by tank size: 5 GPM for 1.0 cu ft, 7 GPM for 1.5 cu ft, 10 GPM for 2.0 cu ft
• Standard 120V outlet needed within reach for the control valve
• No chemical storage, feed pumps, or secondary equipment required
• SoftPro installation support available by phone during and after setup

Industry Certifications and What They Mean for You

SoftPro systems are designed and manufactured to meet or exceed the standards set by the water treatment industry's leading certification bodies. IAPMO certification confirms product safety and performance under recognized plumbing standards. WQA testing verifies that contaminant removal claims are backed by independent laboratory data. NSF certification means the materials in contact with your drinking water have been evaluated and approved as safe. ISO 9001 certification reflects the quality management systems used throughout manufacturing. ANSI standards compliance ensures every component meets established American engineering benchmarks.

These are not promotional labels. They are third-party confirmations that your iron filter has been independently validated — not just claimed to work by the manufacturer. Big difference.

Choosing the Right Iron Master Size for Your Well

The Iron Master comes in three tank sizes, and selecting one isn't just about how many people live in your house — it's about the flow rate your well pump delivers at the pressure tank outlet. Undersize it and you get a pressure drop that ruins showers, irrigation, and any simultaneous water use across your home. Oversize beyond your flow rate and backwash cycles can't properly clean and re-bed the media. Neither scenario is acceptable.

The 1.0 cubic foot system requires a minimum continuous flow rate of 5 GPM — the right fit for most single-story homes with one to two bathrooms on a standard residential well pump. The 1.5 cubic foot system requires 7 GPM and handles larger homes, higher iron concentrations, and households with greater simultaneous demand. The 2.0 cubic foot system requires 10 GPM and is the right call for properties with high-volume well pumps, irrigation systems drawing from the same supply line, or iron levels approaching the top of the removal range.

Not sure about your well pump's actual flow rate? SoftPro's sizing experts will walk you through a simple measurement process by phone before you place your order. Getting the correct tank size is the single most important step in getting the performance this system is engineered to deliver.

Tank Size Reference

• 1.0 Cubic Foot — Minimum 5 GPM well pump flow rate — suitable for smaller homes and moderate iron loads
• 1.5 Cubic Foot — Minimum 7 GPM well pump flow rate — recommended for most residential applications
• 2.0 Cubic Foot — Minimum 10 GPM well pump flow rate — for high-demand homes and high iron concentrations

Iron-Free Water in Three Simple Steps

• Place Your Order : Pick your tank size based on your well pump's flow rate, add any optional accessories at checkout, and complete your order through SoftPro's secure payment process. Your system ships within one to two business days — full tracking information lands in your inbox.
• Receive and Install : Your Iron Master arrives fully assembled and packaged for safe delivery. Install it at the main point of entry using the included guide or SoftPro's video walkthrough. The control valve is pre-programmed and the whole setup is designed to be completed in a single afternoon. Expert phone support is standing by if any step needs clarification.
• Experience the Difference : From the first backwash cycle, your system starts conditioning your water. Within days you'll notice rust stains stop forming, the metallic taste clears, and the sulfur odor is gone. The Iron Master runs its automatic backwash on a scheduled overnight cycle, keeps the media clean without any involvement from you, and keeps delivering the same level of filtration for years — no chemical refills, no media replacement on typical schedules.

Clean Well Water Without Chemicals or Compromise

Chemical iron treatment systems depend on a supply chain. Chlorine tanks run out. Potassium permanganate has to be ordered, stored, and handled with care. Injection pumps fail. Every time the chemical supply is interrupted, your iron problem comes roaring back. Chemical-free iron filtration cuts that dependency out of the equation entirely.

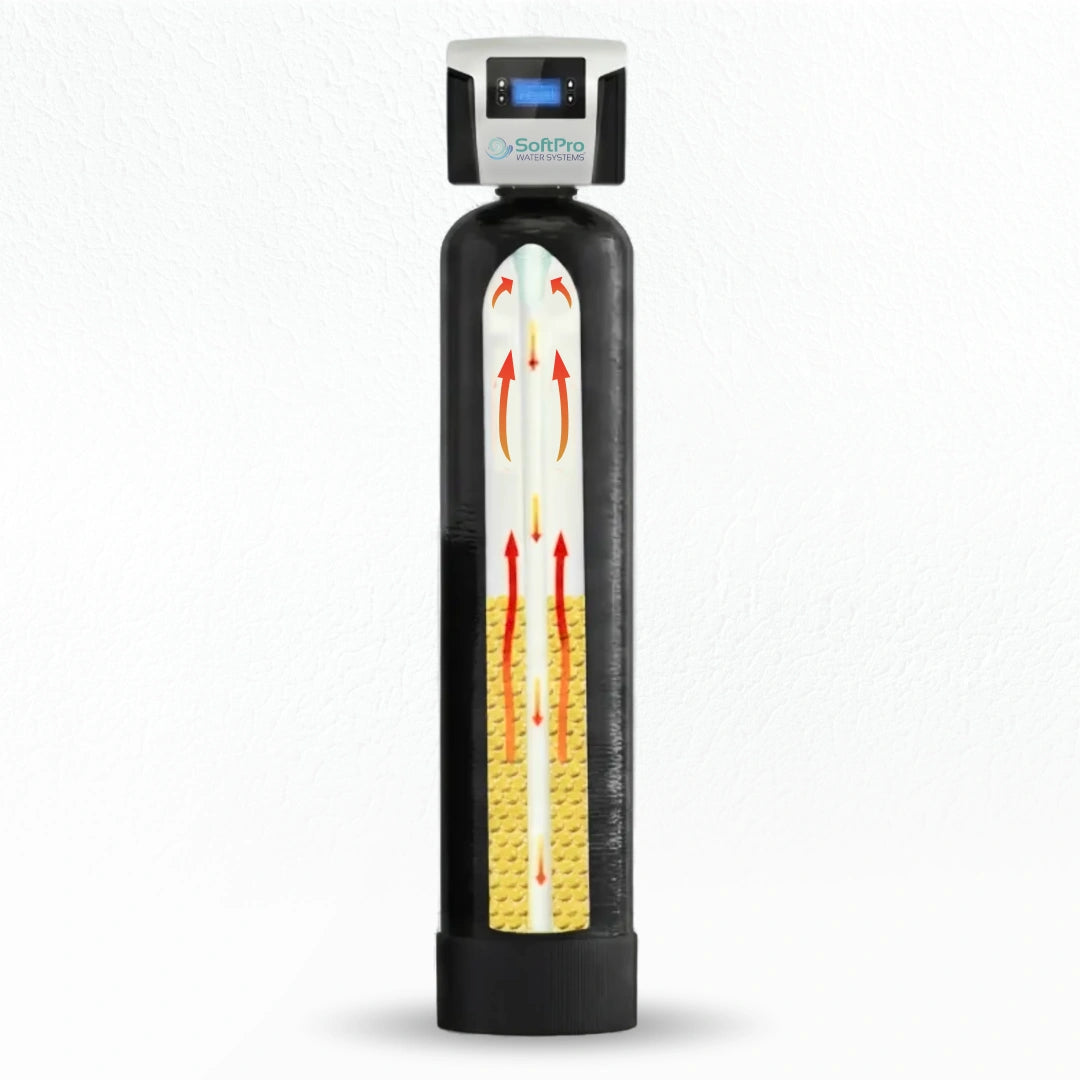

The Iron Master's AIO process works by maintaining a compressed air pocket at the top of the pressure tank. Well water entering the system passes through this air pocket — iron oxidizes right at the point of entry, before the water ever reaches the media bed. The Katalox media captures the oxidized iron particles and holds them until the programmed backwash cycle flushes them to drain and replenishes the air pocket for the next day's filtration.

This approach handles ferrous iron, ferric iron, and iron bacteria-related contamination. It works across a wide pH range and stays effective even when iron levels spike seasonally — common in agricultural areas and regions with variable water tables. The chemistry is straightforward: oxygen oxidizes iron, oxidized iron becomes filterable, filtered iron goes down the drain. No toxic byproducts. No chemical handling. No ongoing cost beyond electricity for the control valve.

• Eliminates up to 30 ppm iron — ferrous, ferric, and colloidal forms — from your full water supply
• Removes up to 7 ppm manganese responsible for black staining on fixtures and laundry
• Clears hydrogen sulfide — the source of rotten egg odor — without masking it with other chemicals
• Self-maintaining automatic backwash cycle — no cartridges, media changes, or chemicals
• Raises water pH naturally, reducing the corrosive impact of acidic well water on copper pipes and fixtures

The Complete Well Water Solution — Iron Master Paired With a SoftPro Water Softener

Most well water carrying iron also carries hardness minerals. Calcium and magnesium create scale buildup in water heaters, restrict flow through narrow fixture openings, and leave behind the white film that makes clean glasses look dirty. A water softener handles hardness. The Iron Master handles iron, manganese, and sulfur. Together, they cover the complete picture of what well water typically throws at a home.

The recommended installation sequence places the Iron Master first in the treatment train — immediately after the pressure tank — with the water softener second. Removing iron before it reaches the softener protects the resin bed from iron fouling, which is one of the primary causes of early softener failure in well water applications. Clean, iron-free water entering the softener means the resin works efficiently, regenerates cleanly, and lasts significantly longer than it would treating raw iron-laden well water directly.

SoftPro's Elite HE and ECO softeners are designed to work in sequence with the Iron Master — no additional plumbing adaptors, no compatibility headaches. Hardness, iron, manganese, and sulfur handled in a single compact installation at the point of entry.

Confidence You Feel the Moment You Turn It On

Investing in a whole house iron filtration system is a long-term call. The warranty program behind the Iron Master reflects that. The limited lifetime warranty on the filtration tank and core components means you're not running replacement cost calculations in year three or year five. Defects in materials or workmanship are covered for the life of the system under normal residential use.

The 60-day money-back guarantee exists because results are what matter. Sixty days gives you enough time to see multiple backwash cycles complete, test your water again, and know for certain whether iron staining, odor, and metallic taste have genuinely cleared. If they haven't, SoftPro will refund your purchase — no bureaucratic process, no complicated conditions.

• Limited lifetime warranty covering the pressure tank, control valve, and core filtration components
• 60-day money-back guarantee — see real results or receive a complete refund
• Real customer support from water treatment professionals who understand well water chemistry

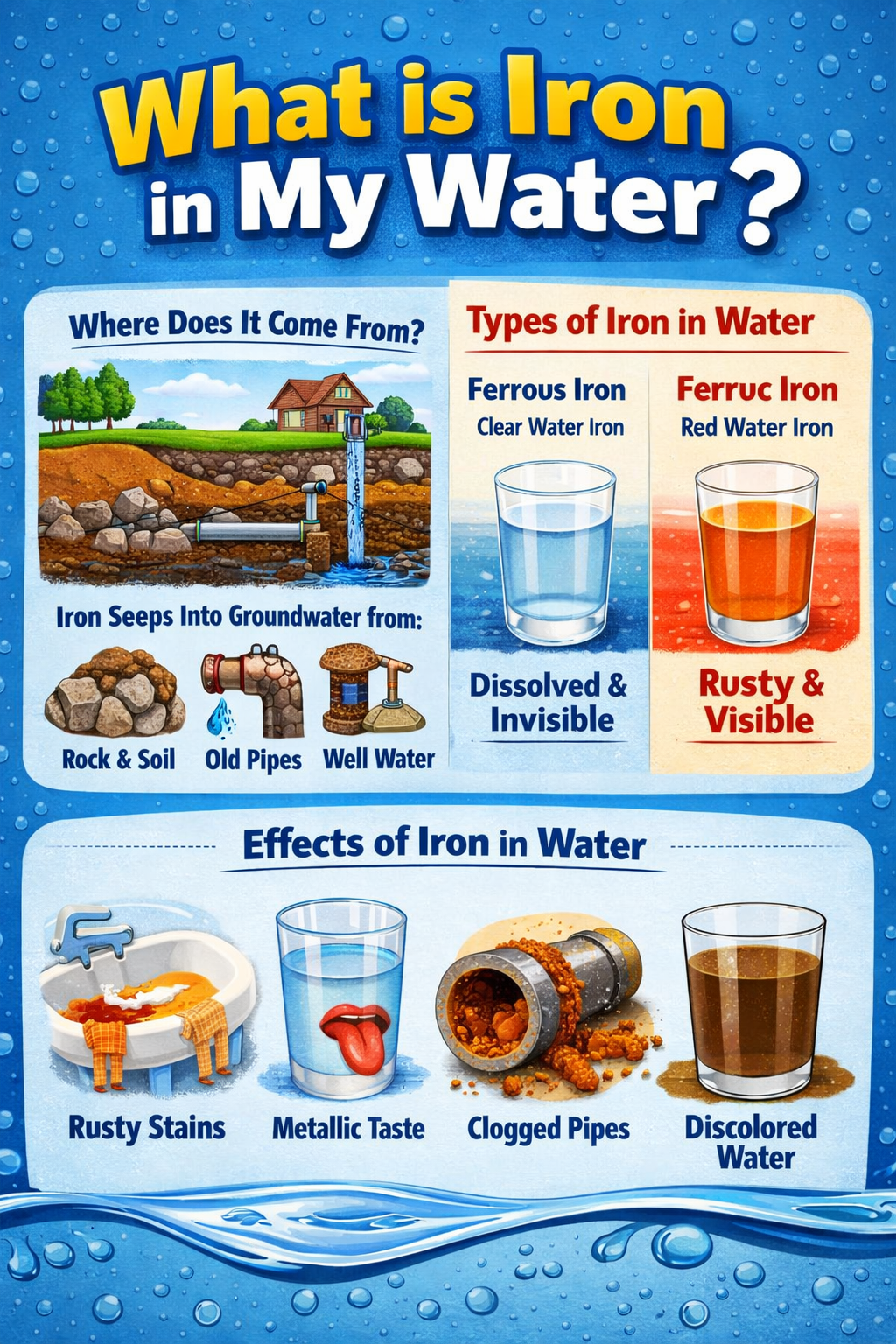

Iron in Well Water — Exactly What It Does and How to Stop It

Iron enters well water naturally as groundwater moves through iron-bearing rock and soil. At low concentrations it's more nuisance than serious health risk. At higher concentrations — above 5 or 10 ppm — it stains everything it touches, makes your water taste like you're sucking on a handful of coins, and starts doing real damage to your home's infrastructure.

Dissolved ferrous iron is invisible straight from the tap but oxidizes on contact with air, leaving those unmistakable orange-brown stains in toilets, around drains, and on any surface where water sits. Ferric iron arrives already oxidized — visible rust particles suspended in your water. Iron bacteria — a biological complication when iron-feeding microorganisms colonize your well or plumbing — produce a slimy residue that coats pipes and smells distinctly foul.

Manganese compounds these problems with black staining that's even more stubborn than iron rust. Hydrogen sulfide, produced by sulfur-reducing bacteria in the water table, creates the rotten egg odor that makes drinking, cooking, and showering with well water genuinely unpleasant.

The Iron Master addresses all three problems simultaneously. Air injection converts dissolved iron to filterable form. Katalox media captures ferric particles and oxidized manganese. The backwash cycle eliminates accumulated contaminants and restores the system for continued operation. The result is water that's clear, odor-free, and free of the metallic character that makes untreated well water so frustrating to live with.

• Ferrous iron — dissolved and invisible at the tap, but stains everything it contacts after oxidation
• Ferric iron — visible rust particles suspended in water, clogging fixtures and appliance filters
• Iron bacteria — biological contamination causing slime buildup and persistent foul odor
• Manganese — black staining on porcelain, fixtures, and laundry that outlasts bleach treatment
• Hydrogen sulfide — rotten egg smell from sulfur-reducing bacteria that permeates your entire water supply

Expert Support — Real People Who Know Well Water

Iron filtration involves real variables — your specific iron concentration, your well pump's output, your home's plumbing configuration, and whether you're dealing with ferrous iron, bacteria-related issues, or a combination of several contaminants. Getting the right system and setting it up correctly the first time matters. The SoftPro support team is staffed by people with the technical background to give you accurate, specific guidance — not generic answers.

Before you purchase, SoftPro's team can help you interpret your water test results, confirm the correct tank size for your well pump, and advise on whether pairing with a water softener makes sense for your specific water chemistry. During installation, live phone support is available to walk through any step where you want a second set of expert eyes on the process. After installation, ongoing technical support ensures your system keeps performing at the level you invested in.
Pre-purchase consultation to confirm sizing, compatibility, and treatment sequence for your water chemistry

Live installation support from trained water treatment specialists available by phone

Post-installation technical assistance for control valve programming, backwash scheduling, and performance optimization

Ongoing access to the SoftPro knowledge base and installation video library at no additional cost
